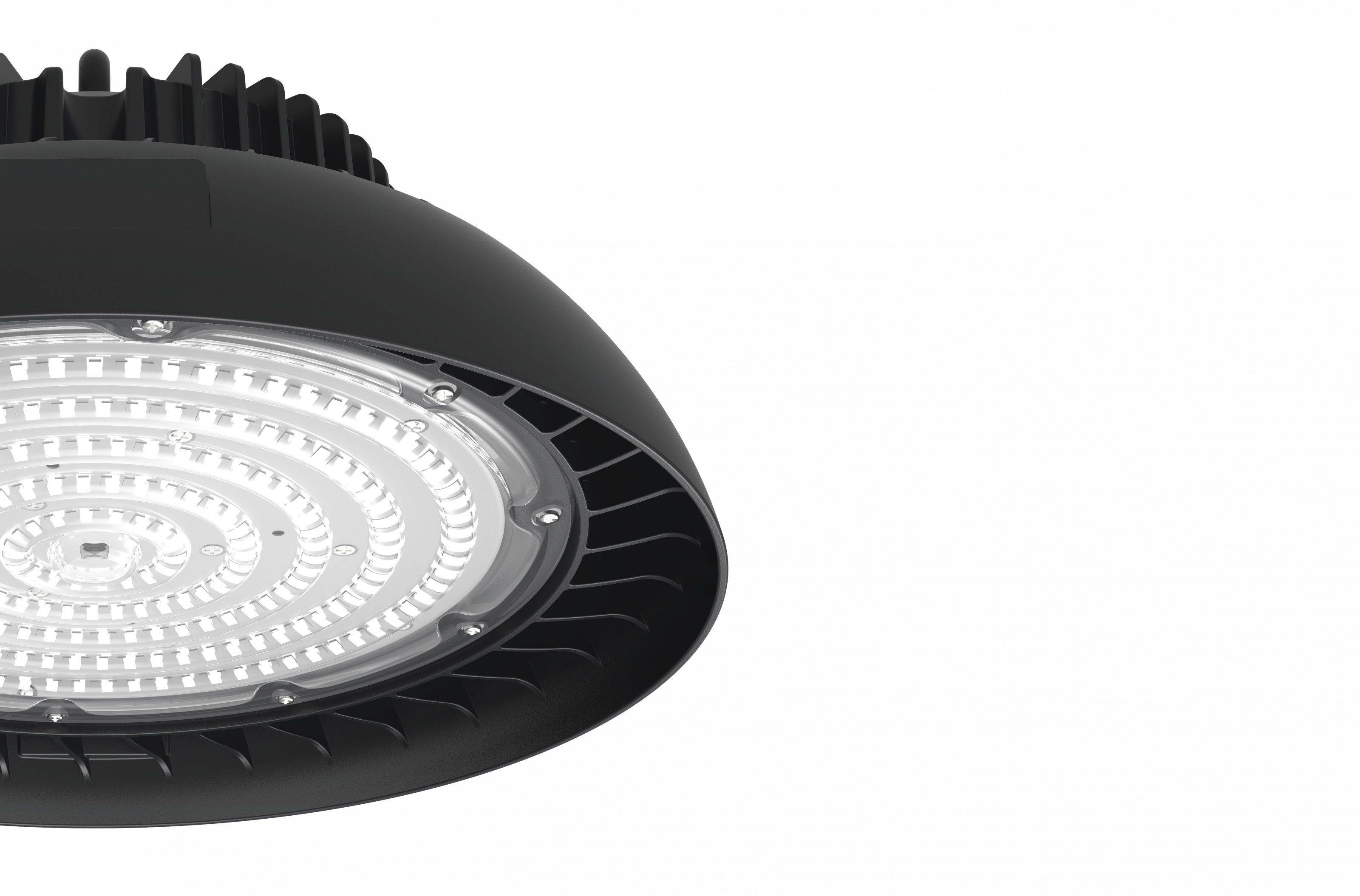

An optical lens controls the light spread, reducing wasted light and preventing unwanted glare for a more comfortable work environment.
Orbit Highbay
Essential Series LED Highbay
✓ Excellent chip efficacy of 130lm/W
✓ 54,000+ hours life to L70
✓ IP65 and IK10 rated
✓ 2m Flex and Plug
✓ Quality Sosen driver
✓ Available in black and white
✓ 100W – 240W range
✓ 4000K & 6000K options
UP TO
31,000lm
OUTPUT
HIGH
130lm/W
SYSTEM EFFICACY
UP TO
100,000
HOURS DRIVER LIFETIME
LONG
54,000+
HOURS LED LIFETIME
Feature
Peace of Mind
We use a quality 100,000-hour driver that's fit for the task, with all the necessary protections like 4kV Surge protection plus SCP/OTP/OVP/OPP.
Optical Lens Design

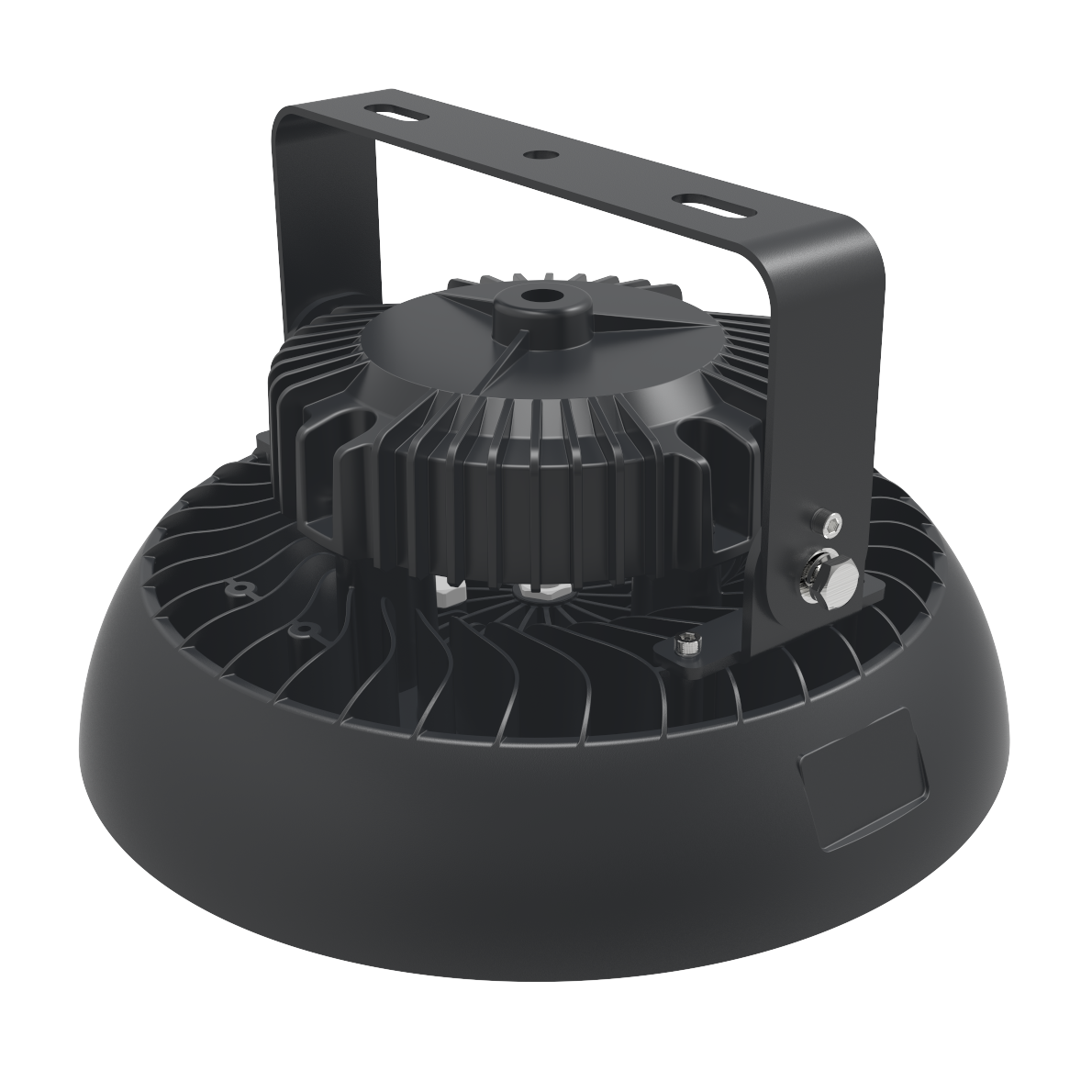

Outstanding Thermal Performance
Our heatsink design allows air to flow through the fins for optimal cooling, ensuring the long life of the LEDs.
Family specifications and downloads
- orbit100-840-90orbit150-840-90
- 100W150W
- 13,000lm19,500lm
- 130lm/W
- 4000K / 6000K (860)
- >80
- 90º / 60º (indent)
- >54,000hrs
- IP65
- IK10
- Sosen IP65 Driver
- 2m, 3 core cable with plug
- Black / White
- DALI / 1-10V (indent)
- Suspended / Surface (accessory)
- 5 Year product replacement
Specifications
Light Colour
Controls
Housing Colour
Wattage
Distribution
PRODUCT CODE
System Wattage
CCT
Lumen Output
Luminaire Efficacy
ORBIT100-840-90
100W
4000K
13,000lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
13,000lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
8%
Efficiency
90%
Inrush Current
60A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT150-840-90
150W
4000K
19,500lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
150W
CCT
4000K
Lumen Output
19,500lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT150-840-90-W
150W
4000K
19,500lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
150W
CCT
4000K
Lumen Output
19,500lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
White (9003)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT150-860-90
150W
6000K
19,500lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
150W
CCT
6000K
Lumen Output
19,500lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT200-840-90
200W
4000K
26,000lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
200W
CCT
4000K
Lumen Output
26,000lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-200CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
5.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT200-840-90-W
200W
4000K
26,000lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
200W
CCT
4000K
Lumen Output
26,000lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-200CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
White (9003)
Weight
5.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT200-860-90
200W
6000K
26,000lm
130lm/W
Product image
Light distribution
Product dimensions
Full specifications
System Wattage
200W
CCT
6000K
Lumen Output
26,000lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-200CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
7%
Efficiency
93%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
5.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT240-840-90
240W
4000K
31,200lm
130lm/W
Product image
Product dimensions
Full specifications
System Wattage
240W
CCT
4000K
Lumen Output
31,200lm
Luminaire Efficacy
130lm/W
Beam Angle
90°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
28
Power Supply
Sosen SS-240CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.98
THD (Typ)
7%
Efficiency
92%
Inrush Current
95A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
5.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
ORBIT100-840-60
100W
4000K
13,000lm
130lm/W
Product image
Product dimensions
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
13,000lm
Luminaire Efficacy
130lm/W
Beam Angle
60°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
Fixed Output
SDCM
<5
UGR
25
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
8%
Efficiency
90%
Inrush Current
60A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 Weeks
MOQ
20
Downloads
ORBIT100-840-60-1-10V
100W
4000K
13,000lm
130lm/W
Product image
Product dimensions
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
13,000lm
Luminaire Efficacy
130lm/W
Beam Angle
60°
CRI
>80
LED Lifetime - L70
>54,000hrs
Control
1-10V
SDCM
<5
UGR
25
Power Supply
Sosen SS-150CP
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor (Typ)
0.97
THD (Typ)
8%
Efficiency
90%
Inrush Current
60A
Driver Lifetime (Tc≤65℃)
100,000hrs
Protections
SCP, OTP, OVP, OPP
Surge protection
L/N-PE: 4kV, L-N: 4kV
Connection
2m 3 core cable with 3 pin plug
Body Material
Corrosion-resistant aluminium
Lens Material
Polycarbonate
Finish
Anti Corrosion Powder Coating
Colour
Black (RAL 9011)
Weight
4.5kg
IP Rating
IP65
IK Rating
IK10
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 Weeks
MOQ
20
Downloads
SURFACE MOUNTING KIT
MATERIAL
Galvanised Iron
FINISH
Epoxy anti-corrosion coating
COLOUR
Black or White
TILT
180º
STOCKED
Yes
PRODUCT CODE:
100W/150W:
ORBIT100SMKIT
200W/240W:
ORBIT200SMKIT
Buy this Product
